J6B7Y Angle Throttle Globe Valve
Product overview
Product model: J6B7Y
Nominal pressure: PN16~45MPa
Nominal diameter: DN25~45mm
Applicable medium: water, oil, natural gas and other media
Applicable temperature: -29 ~ 120℃
J6B7Y Angle Throttle Globe Valve overview
The opening and closing parts of J6B7Y Angle Throttle Globe Valve produced and sold by Baigang Valve Group are plug shaped disc, the sealing surface is flat or conical, and the disc moves in a straight line along the center line of the fluid.Stem movement form, there are lifting rod type (stem lifting, hand wheel not lifting), there are also lifting rotary rod type (hand wheel and stem together rotating lifting, nut in the valve body).Bellows globe valves are suitable for full opening and full closing only. Adjustment and throttling are not allowed.
J6B7Y Angle Throttle Globe Valve structural features
Structure is simple, easy to manufacture and repair, low cost;
Adjustment accuracy is not high, can not be used for regulation;
Sealing surface easy erosion, can not be used for cutting media;
Poor sealing

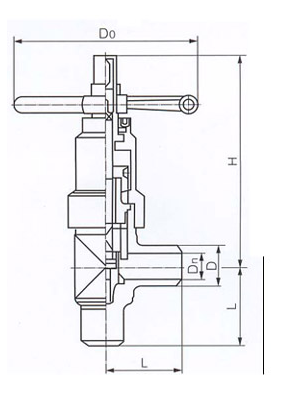

J6B7Y Angle Throttle Globe Valve shape and connection dimensions
|
PN (MPa) |
DN (mm) |
L |
H |
Dn |
D |
D0 |
|
16 |
25 |
108 |
310 |
23 |
42 |
200 |
|
32 |
1 14 |
325 |
29 |
54 |
240 |
|
|
40 |
121 |
340 |
36 |
60 |
280 |
|
|
50 |
140 |
380 |
45 |
73 |
300 |
|
|
65 |
165 |
3 95 |
58 |
89 |
360 |
|
|
80 |
184 |
475 |
72 |
108 |
400 |
|
|
100 |
229 |
495 |
90 |
133 |
450 |
|
|
125 |
266 |
545 |
113 |
159 |
500 |
|
|
150 |
305 |
57 5 |
135 |
192 |
550 |
|
|
25 |
25 |
108 |
310 |
23 |
42 |
200 |
|
32 |
114 |
325 |
29 |
54 |
240 |
|
|
40 |
121 |
340 |
36 |
60 |
280 |
|
|
50 |
140 |
380 |
45 |
73 |
300 |
|
|
65 |
165 |
395 |
58 |
89 |
360 |
|
|
80 |
184 |
475 |
72 |
108 |
400 |
|
|
100 |
229 |
495 |
90 |
133 |
450 |
|
|
125 |
266 |
545 |
113 |
159 |
500 |
|
|
150 |
305 |
575 |
135 |
192 |
550 |
